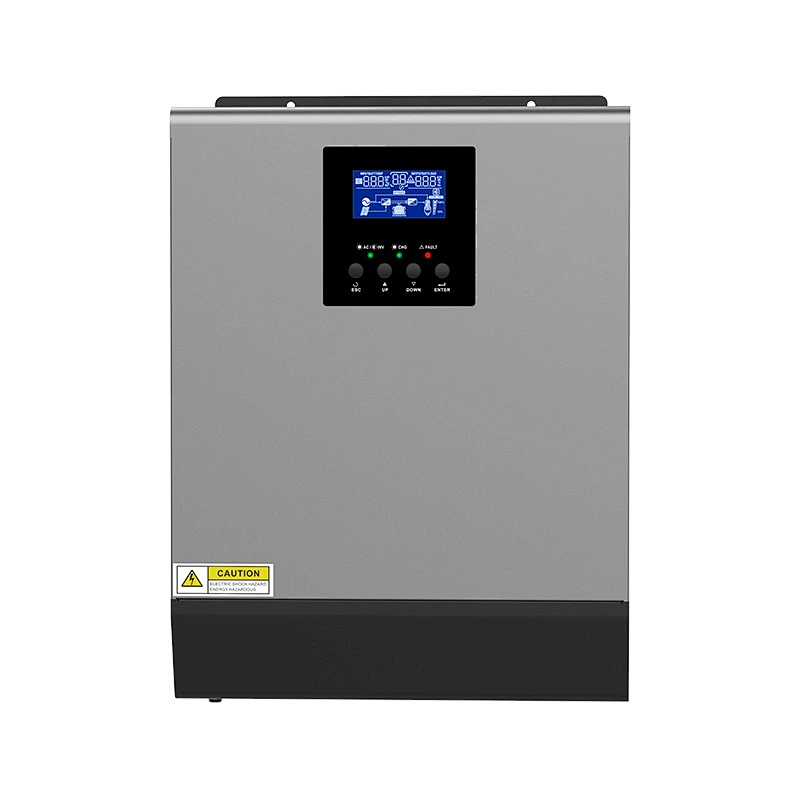

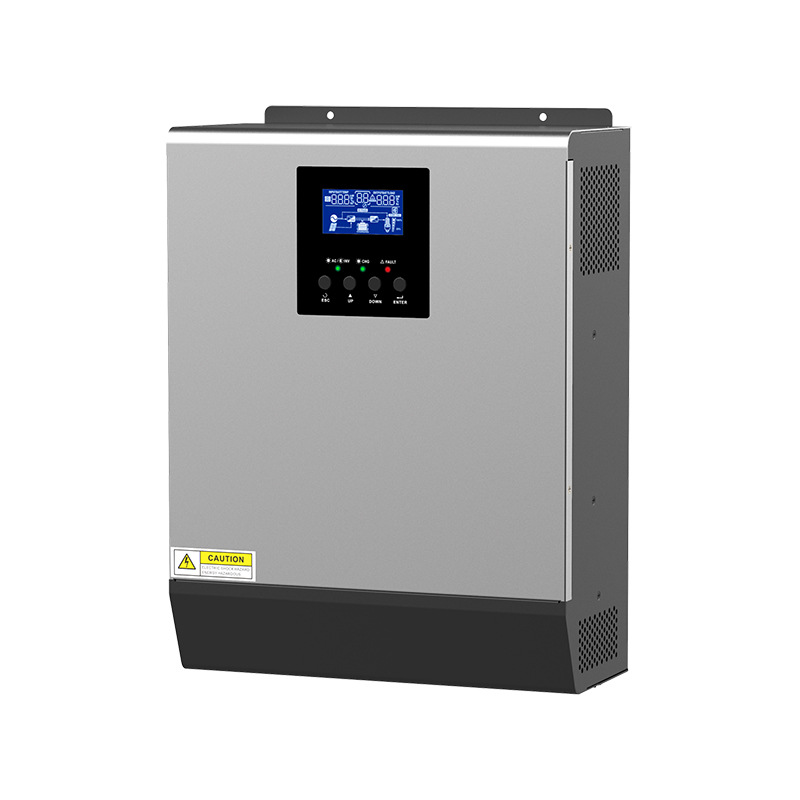

| Model Number | SSI006 | ||
| Rated Power | 1000VA/800W | 3000VA/2400W | 5000VA/4000W |
| INPUT | |||
| Voltage | 230 VAC | ||
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) | ||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | ||
| OUTPUT | |||
| AC Voltage Regulation（Batt. Mode) | 230VAC±5% | ||
| Surge Power | 2000VA | 6000VA | 10000VA |
| Efficiency (Peak) | 90% | 93% | |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) | ||
| Waveform | Pure sine wave | ||
| BATTERY &AC CHARGER | |||
| Battery Voltage | 12 VDC | 24 VDC | 48 VDC |
| Floating Charge Voltage | 13. 5 VDC | 27 VDC | 54 VDC |
| Overcharge Protection | 15 VDC | 30 VDC | 60 VDC |
| Maximum Charge Current | 10A or 20A | 20A or 30A | 10A/20A/30A/40A/50A/60A |

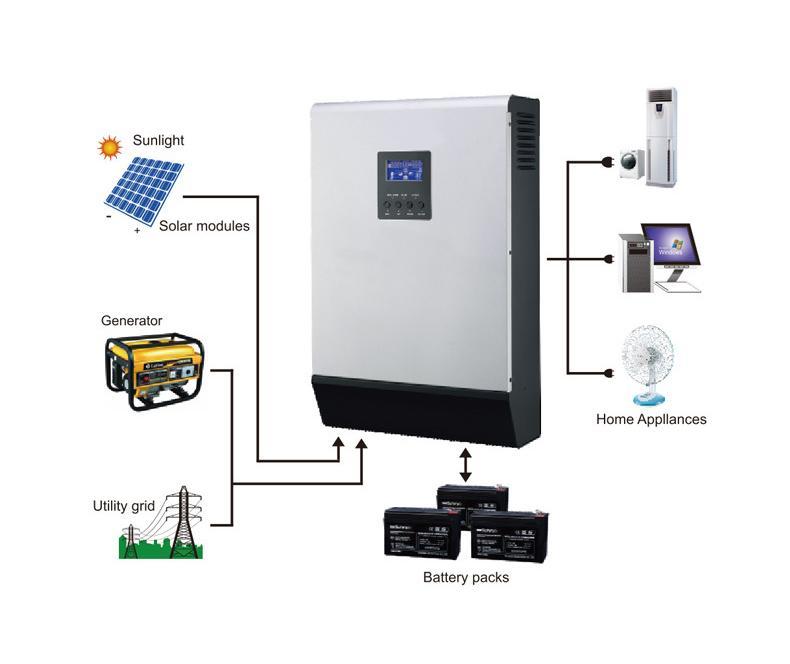

| SOLAR CHARGER (OPTION) | |||
| Charging Current | 50A | ||
| Maximum PV Array Open Circuit Voltage | 40 VDC | 80 VDC | 105VDC |
| PV Range Operating Voltage | 15~18VDC | 30~32VDC | 60~72VDC |
| Standby Power Consumption | 1W | 2W | 2W |
| PHYSICAL | |||
| Dimension, DxWxH (mm) | 305*300*110 | 305*272*100 | 413*295*120 |
| Net Weight (kgs) | 4. 5 | 6. 9 | 9. 8 |
| OPERATING ENVIRONMENT | |||
| Humidity | 5%to 95% Relative Humidity (Non-condensing) | ||
| Operating Temperature | 0°C-55*C | ||
| Storage Temperature | －15°C-60"C | ||
